- 當前位置：深圳市泰立儀器儀表有限公司 > 產品中心 > 工業無損檢測 > 美國DAKOTA NDT螺栓應力測試儀BT2-DL/BT1-DL

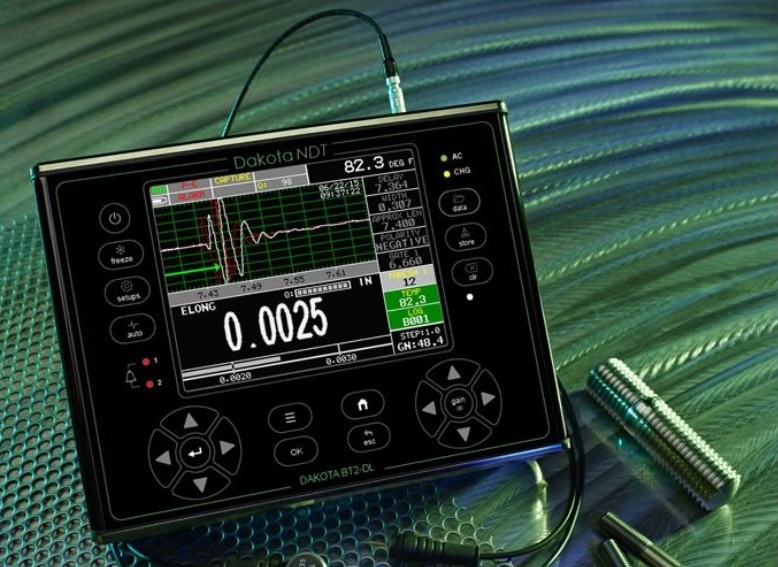

美國DAKOTA NDT螺栓應力測試儀BT2-DL/BT1-DL
詳細信息品牌：美國DAKOTA NDT 型號：/BT1-DL 輸入通道數：1 應力測量范圍：根據自選探頭 分辨率：+/-0.0001毫米 可測樣品高度：根據自選探頭 外形尺寸：216 x 165 x 70 mm 分辨率：+/-0.0001毫米 可測樣品高度：根據自選探頭 美國DAKOTA NDT螺栓應力測試儀BT2-DL
BT2-DL超聲波螺栓張力監測器是我們螺栓產品的*新儀表。
簡介
它融合了DAKOTA NDT BT1-DL螺栓張力監視器的所有偉大功能，在功能、硬件、速度和長度方面增加了一些好處。DAKOTA NDT BT2-DL超聲波螺栓張力監視器非常準確地測量長度可達100英尺的緊固件，并在整體性能/功率方面得到更高提升！
當螺母和螺栓在負載下緊固在一起時，擰緊螺母的動作會增加施加在螺栓上的力，從而導致伸長。
通過使用超聲波，螺栓張力監視器不受溫度、摩擦或電阻因素的影響，這些因素會影響標準扭矩測量技術的精度-使達科他州BT1-DL螺栓張力監視器的精度在0.0001毫米（0.0001英寸）內。
使用儀表的USB接口以及可選的關閉附件，可以編程為在施加適當?shù)呢?fù)載時自動停止擰緊過程。
特點
顯示和測量選項的范圍包括：伸長率、載荷、應力和%應變、RF、校正、帶限幅桿的大數字
溫度補償以對抗溫度變化引起的測量不規則
數據存儲能力：4GB內部?jī)?nèi)存
自動設置功能自動優化檢測和調整顯示
與數據端口一起工作的HI/LO警報耐受性限制
美國DAKOTA NDT螺栓應力測試儀BT2-DL特征
Model BT2-DL Display Mode Material thickness digits display A-Scan Rectified +/- (half wave view), or RF (full waveform view) Measurement Range PE - 25.4 - 25,400mm (1 - 999”), EE, EEV Resolution +/- 0.0001mm (+/- 0.00001") Measurement Rate Manual 8 readings per second Velocity Calibration Range 1250 - 13,995m/s (0.0492 - 0.5510 in/μs) Temperature Compensation Limit Alarm Mode Memory and Data Logging 4GB internal memory
Sequential and grid batching
Bitmap graphic capture and capture viewerCalibration Options Automatic, fixed, single and two-point Transducer Probe Type Single element Transducer Frequency Range 1 - 10MHz Display Blanview sunlight readable QVGA TFT color display (320 x 240 pixels)
Viewable area 4.54 x 3.40 in (115.2 x 86.4 mm), or 5.7 in (144.78 mm) diagonalUnits (Selectable) in/mm, μs LED Backlight On / Off/ Auto Repeatability / Stability Indicator Low Battery Indicator Battery Save Mode Auto Transducer Connector Type Microdot, Lemo and BNC USB-C Interface Temperature Sensor Screen Refresh Rate 60Hz Timing Precision TCXO timing with single shot 100 MHz 8 bit ultra-low power digitizer Pulser Type Spike, Square Wave & Tone Burst.Pulser Voltage: 100 – 400v
Selectable step options Spike, Thin, Wide, HV Spike, HV Thin, HV Wide, TB .5MHz, TB 1MHz, TB 2MHz, TB 5MHz, TB 10 MHz. Spike 40 ns, Square Wave 80 to 400 ns, Tone Burst 50 ns to 1 microsecondDamping 50, 75, 100, 300, 600, & 1500ohms Frequency Band Broadband 1.8 - 19 MHz (-3dB) filter Horizontal Linearity +/- 0.4% FSW Vertical Linearity +/- 1% FSH Amplifier Linearity +/- 1 dB Amplitude Measurement 0 to 100% FSH, with 1% resolution Delay 25,400 mm (0 - 999.9”) at steel velocity Measurement Gate Three independent gates depending on measurement mode selected, with audible and visual alarms. Amplitude 5-95%, 1% steps Setups 64 custom user defined setups; factory setups can also be edited by the user Auto Set Automates the detection, scope, and display setting process for each individual bolt Alarm Limits Adjustable Hi/Low tolerances with visual LED’s and audible beeper Field Calibration Vector or Regression correction curve for increased accuracy using Load & Stress Alarm Limits Bar Hi & Lo alarm limits for displaying an acceptable tolerance range Detections Zero Crossing Time Nanoseconds Elongation Change in length (in/mm) Load Force load applied (pounds KIP, or megapascals MPa) Stress Force for unit area stress applied (inches per inch or millimeters per millimeter) %Strain Ratio of elongation to effective length Bolt Materials Select types from a preset or custom list Glue-On Available for short bolts with minimal/short elongations to eliminate transducer placement errors
技術規格Part Number Description Certificate Z-197-0001 Dakota BT2-DL Benchtop Bolt Tension Monitor (Max II) Operating Temperature -10 to 60ºC (14 to 140ºF) Power Supply Lithium Ion Pack (supplied) or 6 x AA batteries Battery Life Lithium Pack: 18hrs, Alkaline: 12 hrs, Nicad: 5 hrs, NI-MH: 12 hrs Gauge Weight 2.04kg (4.5lbs) - including batteries Gauge Dimensions 216 x 165 x 70mm (8.5 x 6.5 x 2.5”) Packing List Unit, Lithium Pack, 4 oz. Bottle of Couplant, USB Type A to Type B Transfer Cable, Carrying Case, 10’ Lemo 00 to Microdot Transducer Cable, PC Utility Software (download from website), Operation Manual and Certification.
● 提供標準證書
標準
可追溯到NIST&MIL-STD-45662A的工廠校準
-
